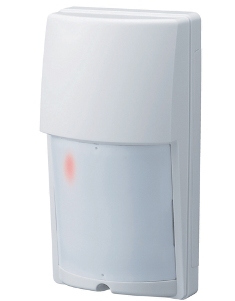

Outdoor Wireless Ceiling Mount Standard BV-302

   These general purpose PIRs are designed to provide reliable motion detection for larger commercial applications. Exceptional design care and factory testing ensure years of trouble free performance. Immunity against false alarms from RF, static, electrical transients and white light are all designed in features. Multi-Level Signal Processing, temperature compensation and large multi-beam lens design means the human target will not slip by unnoticed even on a hot summer day. They can be used with a variety of multimedia controllers such the KPC2, or TV66K as well as playback devices such as the TecMP3 Industrial audio player.

Physical Specifications
BV-302 speciications:
Contact rating (alarm & tamper)...... 100 mA @ 24 VDC
Alarm contact resistor......10 ohm 0.25W
Operating temperature...... 0°C to 50°C (32°F to 122°F)
Storage temperature ....... -40°C to 60°C (-40°F to 140°F)
Operating humidity......... 5% to 95% RH non-cond.
Storage humidity........... up to 99% RH non cond.
RF immunity..50 V/m over range 0.01 MHz to 1.2 GHz
Static immunity............ 25 kV
Transient immunity......... 2.4 kV @ 1.2 joules
White light immunity...... 20 000 Lux at the detector
Walk detection speed.. 0.5' to 10'/s (0.15 m/s to 3 m/s)
Coverage angle (wall/wall lens)............... 90° minimum
Vertical adjustment..... +5° to -10°
Mounting heights........ 6' to 10' (nominal 7.5')

Related Products
   TecMP3 Industrial MP3 Player
TM24(R) 15W/4-button Player
TM21 2W/1-button MP3 Player
TV66K controller
KPC-2 Controller
Power Adapter
Related Products

Standard Features
  • Multi-Level Signal Processing
  • Dual element low noise sensor
  • Four interchangeable lenses
  • High level static protection
  • High level transient protection
  • High level of White Light Immunity
  • Excellent RF immunity
  • Temperature compensation
  • Fast / slow detection jumper
  • LED on / off jumper
  • Vertical adjustment
  • SMD construction
  • Super quiet operation
  • Wall / corner mounting
  • Small size
  • Blends with any decor
  • 5 YEAR WARRANTY
