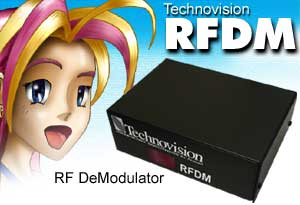

RFDM Image
   The Technovision RFDM is an Industrial Grade RS-232 controllable device that can demodulate any RF frequency signals up to 801.25 MHz into separate NTSC video and line level audio signals. These signals can then be routed through a video switcher to integrate cable signals into kiosk applications.
   The RFDM can also be used as a stand-alone device to automatically select and display RF channels on any NTSC video monitor.
Less than U$250 (limited stock item)

Physical Specifications

Power Requirements:
  120VAC / 60Hz
  (12VDC, 800mA power adapter included)
Power Consumption:
  3W max.
Net Weight:
  854 g. (1.88 lbs.)
Dimensions (HxWxD):
  64 x 150 x 113mm (2.5" x 6" x 4.5")
Operating Temperature:
  32 to +132 deg. F (0 to +50 deg. C)
Operating Humidity
  0 to 90 % non-condensing
Related Products
   421VS Video Switcher
KPC2 Controller
PC2 Controller
Power Adapter
Related Products

Standard RFDM Features

  • Professional Grade Demodulator
  • 2 Coax Inputs (Radio & TV)
  • NTSC video out (RCA)
  • Stereo audio out (RCA x 2)
  • RS232 controllable
  • Microprocessor based
  • Restores to it's last state on power outage
  • Power Adapter included
