TM24 / TM24R

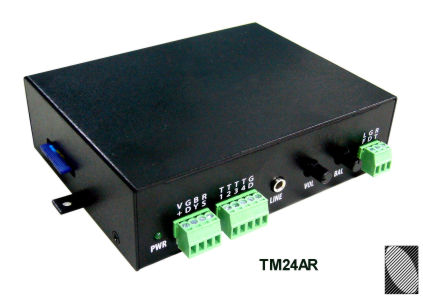

TM24R Image
 The Technovision® TM24/TM24R is an industrial MP3 playback device, capable of either continuous audio or interactive playback through user-selectable tracks with optional (R) relay (rated 12A/120VAC) activation. The TM24/TM24R is also designed for kiosk applications, allowing for direct access to individual tracks of audio through various pushbuttons ,motion sensors or touch sensors.

Physical Specifications
Power Requirements:
  Input: 12 to 32 VDC.
  120VAC/60 Hz to 12V DC adapter included.
  Optional 24V DC power adapter available.
  Idle Current: 60ma @ 12Vdc.
  Active Current: 500ma @ 12Vdc (with 8 ohm speakers).
Net Weight:
  1.5 lbs.
Operating Temperature/Humidity:
  -30C to 85C / non-condensing.
  SD/SDHC cards may have different ratings.
Dimensions (WxDxH)
  5.1" x 4" x 1.5"
  5.9" x 4.4" x 1.5" with tabs/connectors


Download
Operating Guide
........more manuals
Related Products
   TecMP3 15W, 8-button player
TM212 6W, 12-button player
TM21 6W, 1-button player
T400 kiosk handset
SP22 industrial 2-way speakers
Motion Sensors
Pushbuttons
Related Products

Standard Features
  • ALL DIGITAL SD/SDHC player.
  • BUILT IN AMPLIFIER
  • Stereo speaker output (up to 15W/channel into 8 Ohm with 32VDC P/S) on screw terminals.
  • Plays ISO 11172-3 MP3 files.
  • 500 hour audio capacity using a 32GB SDHC card (optional).
  • Scripting language to control audio & relays.
  • External volume control knob for speaker and LINE outputs.
  • External balance control knob.
  • LINE output on a 1/8" (3.5 mm) jack.
  • Direct access to 4 tracks.
  • Access to 4x99 tracks in sequential mode.
  • RoHs compliant
  • Mounting tabs on the side.
  • Terminal connectors for power.
Hardware Options:

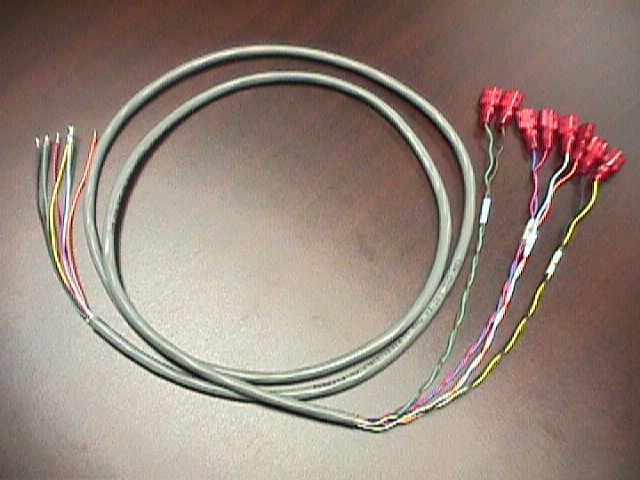

PC2-B4 Four Button harness
SP2.2 Commercial speakers
SD8G/SDHC8G 8GB SD/8GB SDHC cards

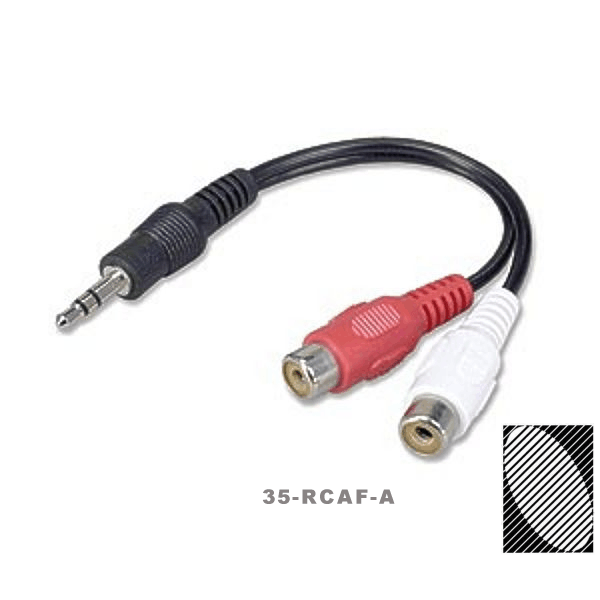

35-RCAF-A RCA ADAPTER
35-RCAM-C RCA CABLE
