TM212

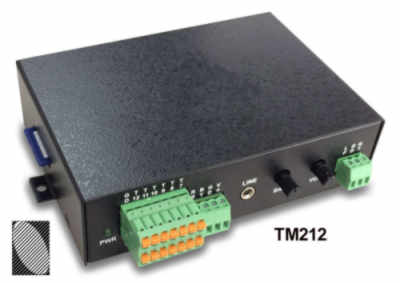

TM212 image
   The Technovision® TM212 was primarily designed for industrial applications, allowing for interactive playback of MP3 (MPEG1-LAYER 3) audio using up to 12 pushbuttons, motion sensors or any devices capable of a dry contact closure.

Physical Specifications
Power Requirements:
  10 to 15 VDC regulated
  30ma (idle) - 100ma (average)
  Adapter (supplied): input 120VAC, 60 Hz
Net Weight:
  less than 1 lbs.
Operating Temperature:
  32 to +132 deg. F (0 to +50 deg. C)
Operating Humidity:
  0 to 90 % non-condensing
Physical Dimensions:
Excluding connectors and mounting wings:
  128mm x 90mm x 35mm (WxDxH)
Including connectors and mounting wings:
  145mm x 105mm x 35mm (WxDxH)
Mounting Wings Dimensions:
  Screw hole size on wing: 3.8mm
  Screw mounting distance: 135mm

Download
Quick Reference Guide
TM212 User Manual
.....more manuals
Related Products
   TecMP3 15W/8-button player
TM24 15W/4-button player
SP22 2-way speakers
Motion Sensors
Pushbuttons
Related Products

Standard Features
  • ALL DIGITAL - no moving parts.
  • Plays ISO 11172-3 compliant MP3 files.
  • Metal case with mounting wings.
  • 120VAC-12Vdc P/S supplied
  • Stereo speaker output (6W/CH @ 4 Ohm, 12VDC).
  • SD/SDHC card based (2GB SD, 32GB SDHC max). Cards can be purchased from Technovision.
  • Volume control knob for speaker and LINE output.
  • Single, sequential, random or timed playback.
  • LINE output on a 1/8" (3.5 mm) jack.
  • Terminal connector for button input.
  • All terminals support 30..16 AWG
  • BUSY output to activate low current relay.
Some hardware options:
SP2.2 Bookshelf speakers.
  • MEM5 (1x5) membrane keypad
