Technovision TecMP3

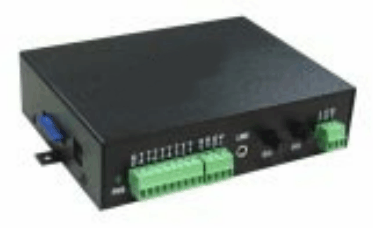

TecMP3 Image
 The Technovision® TecMP3(A) is an industrial MP3 playback device, capable of either continuous, timed, random, or controlled audio playback through speakers or handsets accessed via user-selectable tracks. The TecMP3(A) is designed for kiosk applications, allowing for direct access to individual tracks of audio through various pushbuttons. The TecMP3(A) can also be triggered by motion sensors, computers, RS422, or controllers like the KPC2 , TC1 or AC1.
 With the TecMP3R, you add 8 built-in relays rated at 12A@120VAC or 10A@24VDC.

Physical Specifications
Power Requirements:
  Input: 12 to 32 VDC.
  120VAC/60 Hz to 12V DC adapter included.
  Optional 24V DC power adapter available.
  Idle Current: 60ma @ 12Vdc.
  Active Current: 500ma @ 12Vdc (with 8 ohm speakers).
Net Weight:
  1.5 lbs.
Operating Temperature/Humidity:
  -30C to 85C / non-condensing.
  SD/SDHC cards may have different ratings.
Dimensions (WxDxH)
Case only:
 5.3" (135mm) x 4" (101mm) x 1.35" (34mm)
Mounting wings and connectors:
 6.1" (155mm) x4.3" (110mm) x 1.35" (34mm)
Mounting wings
 .15" (4mm) holes
 5.7"(145mm) apart (center to center)

Download
Operating Guide
Quick Reference Guide
........more manuals
Related Products
   SP22 2-way speakers
T400 Commercial Handsets
Motion Sensors
Pushbuttons
KPC-2 Controller
AC-1 Controller
Related Products

Standard Features
  • ALL DIGITAL SD/SDHC player.
  • BUILT IN AMPLIFIER
  • Stereo speaker output (up to 15W/channel into 8 Ohm with 32VDC P/S) on screw terminals.
  • Plays ISO 11172-3 (MPEG1) MP3 files.
  • 500 hour audio capacity using a 32GB SDHC card (optional).
  • RS232/RS485 port (DB9F).
  • External volume control knob for speaker and LINE outputs.
  • External balance control knob.
  • LINE OUT on a 1/8" (3.5 mm) stereo jack.
  • BUSY output for controlling relay(s).
  • Terminal connector for access to 8 tracks (direct) or 128 tracks in binary mode.
  • Access to 8x99 tracks in sequential mode.
  • RoHs compliant
  • Mounting tabs on the side.
  • Terminals or 2.1mm connector for power.
Hardware Options:
PC2-B4 Four Button harness
SP2.2 COMMERCIAL SPEAKERS
T400 COMMERCIAL HANDSETS
SD1G/SDHC4G 1GB SD/4GB SDHC cards
35-RCAF-A RCA ADAPTER
35-RCAM-C RCA CABLE
