THD002 HiDef Player
** Replaced by THD003**

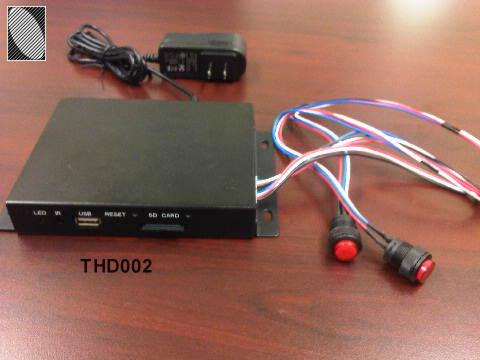

THD002 image
Click on picture above for more images

   The Technovision THD002 is a High Definition (HD) solid-state media player with six (6) built-in button connectors. The function of these buttons can be configured (via remote) to be simple access to the content (NEXT, PREVIOUS, PAUSE, PLAY, VOL+, VOL- etc) or direct access to video/audio files on the player. These six button ports can also control the lighting in the buttons so that they blink to attract customers/visitors to the kiosk, while staying on when a selection is made. This allows the THD002 to function as a controllable, high definition solid-state playback device for theatres, kiosks and stand-alone displays.

Package Contents:
  • THD002 interactive media player
  • 100-240VAC to 5VDC wall adapter
  • IR remote control

    Some hardware options:
  • THD002-B16..PB16R button + 22" harness
  • AHDMI-VGA..VGA ADAPTER
  • PB16R..red button with LED
  • PB19S-W3..19mm button with LED
  • THD002-C11..22" harness with .110 connectors Download
    THD002 Quick Reference Guide
  • Related Products
       THD003..upgraded THD002
    HD01..hd1080 repeater
    HD02..hd1080/VGA repeater
    Pushbuttons
    Related Products

    THD002 Features
  • 1920x1080p output
  • MPEG1/2/4, Real Media, FLASH and jpg content supported.
  • 6-button port
  • 3-volt button LED support
  • Interactive Access to content
  • SDHC slot with protective cover
  • USB 2.0 port for temporary content override or content updating
  • 3.5mm: LINE OUT audio (stereo).
  • Power ON/OFF slide switch

    Physical Specifications
    Power Supply:
      Input: 100-240VAC, 50/60 Hz, TYPE B plug.
      Output: 5Vdc, 4mm OD barrel @ 2A.

    Power Consumption:
     800ma (average)
    Net Weight:
      460 g. (1.01 lbs.)
    Dimensions (width x depth x H)
      With mounting bracket:
      6-5/8" x 4.5" x 1"  /  16.8 x 12 x 2.5 (cm)

      Without mounting bracket:
      5.5" x 4.5" x 1"  /  13.5 x 12 x 2.5 (cm)

    Operating Temperature:
      32 to +132 deg. F (0 to +50 deg. C)
    Operating Humidity
      0 to 80 % non-condensing
