HD01 HiDef Player

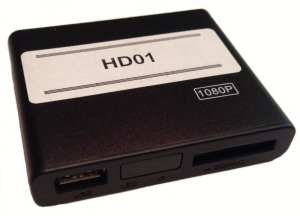

HD-01 front

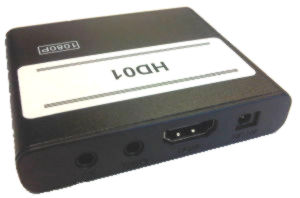

HD-01 back
   The Technovision HD01 is a VERY compact High Definition solid-state media player with HDDigital output with the option to be powered directly off a USB port.
  The HD01 was designed to automatically power up and begin repeating 1080p files created in a multitude of different video formats. Synchronized playback is also available with the addition of a TecIR controller with HD01L firmware.


Package Contents:
  • HD01 media player

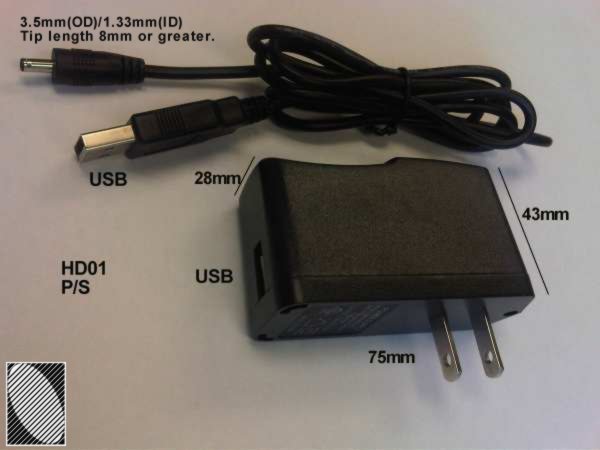

  • 100-240V, 50/60 Hz to 5 VDC USB Adapter
  • 4' USB to 1.3mm power cable

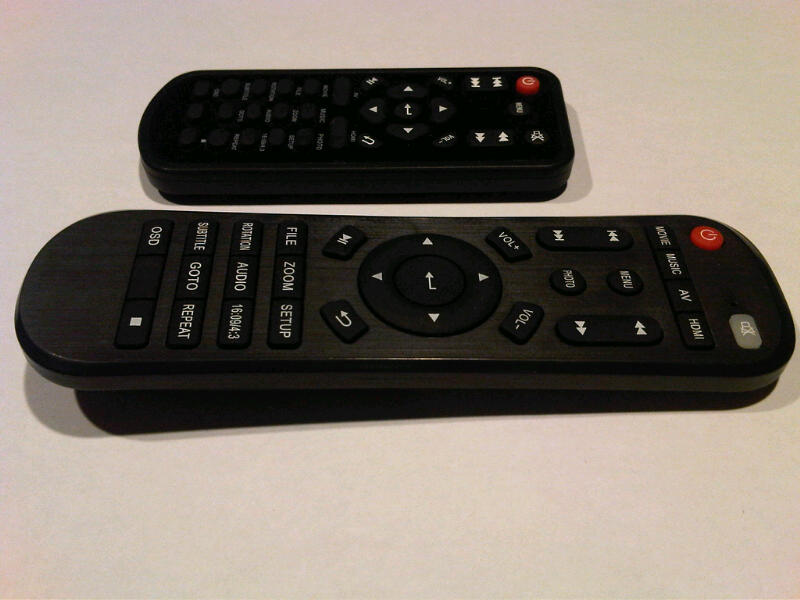

  • Infrared remote
  • 3-RCA 36" cable for Video and Audio
  • Manual

    Some hardware options:
  • HDDigital Cables (6', 10' plus longer lengths)
  • 8GB+ SDHC card
  • _AHDMI-VGA (VGA converter)

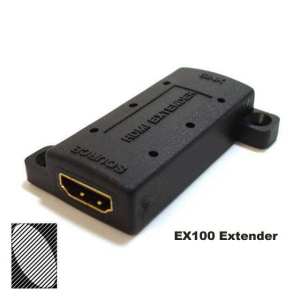

  • _EX100 (hd extender)
  • _HDMI2X (hd splitter)
  • TecIR Infrared Synchronizer
  • Related Products
       THD003 6-button player
    HD02 VGA/HD player
    TecIR IR controller/sync
    Related Products

    DV-75 Features
  • Very Compact
  • Aluminum Metal Case
  • Supports multiple video formats
  • Supports SD/MMC up to 32GB
  • File System: FAT, FAT32, NTFS or exFAT
  • USB 2.0 port for FLASH DRIVEs
  • Digital Frame store when searching
    Added Features
  • 1080p output with optional analog audio
  • No on-screen prompts on remote functions
  • NTSC/PAL video and Audio output
    Supported Video Formats:
  • MPEG 1/2/4, AVI, DIVX, WMV
  • H.264, H.263, WMV9/VC-1, MP4
  • M4V, VOB, TS and TP
    Physical Specifications
    Power Supply:
      100-240VAC, 50/60 Hz
      5Vdc (wall adapter included)
    Power Consumption:
      250ma (MAX) @ 5VDC
    Net Weight:
      446 g. (.99 lbs.)
    Dimensions (LxWxH)
      76 x 65 x 15mm
    Operating Temperature:
      32 to +140 deg. F (0 to +60 deg. C)
    Operating Humidity
      0 to 85 % non-condensing

    Download
    Quick Reference Guide
    Video/Audio Encoding guide
    ...additional manuals
