THD003 HiDef Player

THD003 front

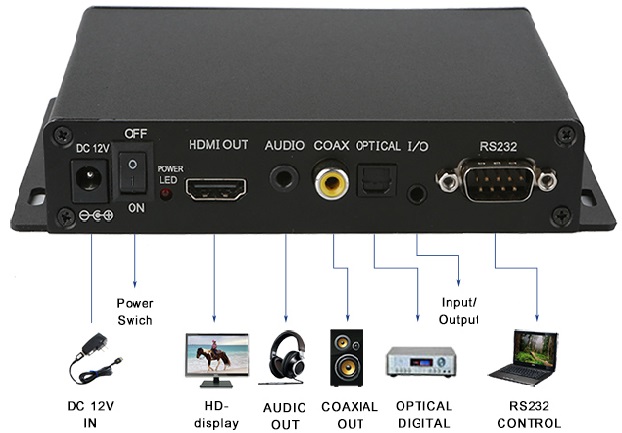

THD003 back

   The Technovision THD003 is a High Definition (HD) solid-state media player with six (6) built-in button connectors and a RS232 port. The function of these buttons can be configured via a configuration text (.txt) file to simulate the remote (NEXT, PREVIOUS, PAUSE, PLAY, VOL+, VOL- etc) or direct access to video/audio files on the player. You can also control the button lockout after a selection is made. This allows the THD003 to function as a controllable, high definition solid-state playback device for theatres, kiosks and stand-alone displays.

Package Contents:
  • THD003 interactive media player
  • 100-240VAC to 12VDC wall adapter
  • IR remote control

    Some hardware options:
  • PB19s PB19S-W3..19mm button with LED
  • THD003-B16..PB16R button + 22" harness with resistor
  • AHDMI-VGA..VGA ADAPTER
  • THD003-C11..22" harness with .110 connectors
  • PB16R..red button with LED
  • Related Products
       HD01..hd1080 repeater
    HD02..hd1080/VGA repeater
    Pushbuttons
    Related Products

    THD002 Features
  • HDMI 1920x1080p output
  • MPEG1/2/4, Real Media, FLASH and jpg content supported.
  • 6-button port with 12Vdc LED support
  • Interactive Access to content via RS232
  • SDHC slot with protective cover
  • COAX VIDEO OUTPUT
  • SPDIF OUTPUT
  • USB 2.0 port for temporary content override or content updating
  • 3.5mm: LINE OUT audio (stereo).
  • Power ON/OFF switch

    Physical Specifications
    Power Supply:
      Input: 100-240VAC, 50/60 Hz
      Output: 12Vdc, 2.1mm ID/5.5mm OD @ 2A.

    Power Consumption:
     200ma (idle), 330mA (average)
    Net Weight:
      300g. (.66 lbs.)
    Dimensions (W x D x H)
      With mounting bracket:
      6.1" x 4.3" x 1.2"  /  15.6 x 11 x 3 (cm)

      Without mounting bracket:
      5.4" x 4.3" x 1.2"  /  13.6 x 11 x 3 (cm)

    Operating Temperature:
      32 to +132 deg. F (0 to +50 deg. C)

    Download
    THD003 Quick Reference Guide
    THD003 Full Manual
