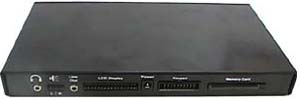

MP3sa Image MP3sa Industrial MP3 player

   The Technovision® MP3sa is an industrial MP3 playback device, capable of either continuous audio or interactive playback through user-selectable tracks. The MP3sa was primarily designed for use as a music sampling device, allowing for direct access to individual "discs" or "songs" as well as the sampling of "tracks" within a "disc". The MP3sa can also be triggered by motion sensors, computers, or RS232 multimedia controllers like the PC2 or KPC1 with the optional RS232 adapter (MP3SA-CA). The MP3sa can also replace the CDROM drive (CDS16CDR) in the CDS16 system.

Physical Specifications
Power Requirements:
  AC 120V, 60 Hz
  (9V DC, 500mA power adapter included)
Net Weight:
  3 lbs. (1.5 kg.)
Dimensions (HxWxD)
  1.5" x 9.25" x 5.5"

Download
Quick Reference Guide (118 KB)
Download CONFIG.TXT file
MP3SA-CA User Manual (PDF)
Related Products
   Power Adapter
PC-2 Controller
TecMP3 Industrial MP3 player
KPC-2 Controller
TecCD Industrial CD player
CD Samplers
Pushbuttons
SP22 2-way speakers
Related Products

Standard Features
  • ALL DIGITAL - no moving parts
  • Headphone output on a 1/8" (3.5 mm) jack
  • Stereo speaker output (2 x 2W) on a 4-pin header (.1" spacing)
  • Line level output on a 1/8" (3.5 mm) jack
  • 16-pin connector for optional 4x20 LCD display
  • 20-pin connector for up to 64 buttons or keypad
  • SmartMedia card connector.

Options: click on item to view image
  • MP3SA-32...32M SmartMedia Card
  • MP3SA-64...64M SmartMedia Card

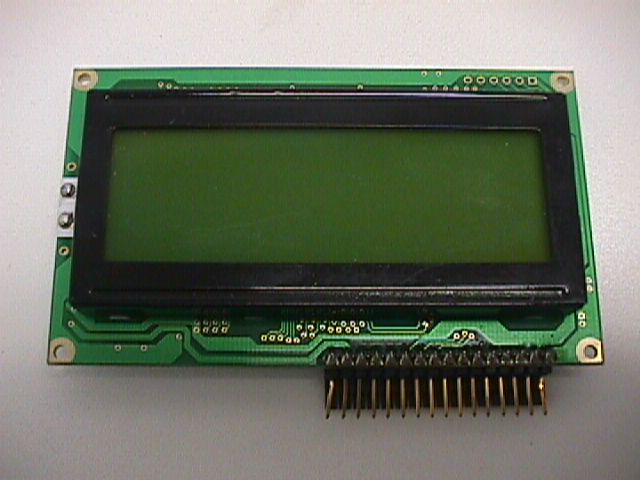

  • MP3SA-DIS ..4 line x 20 LCD display

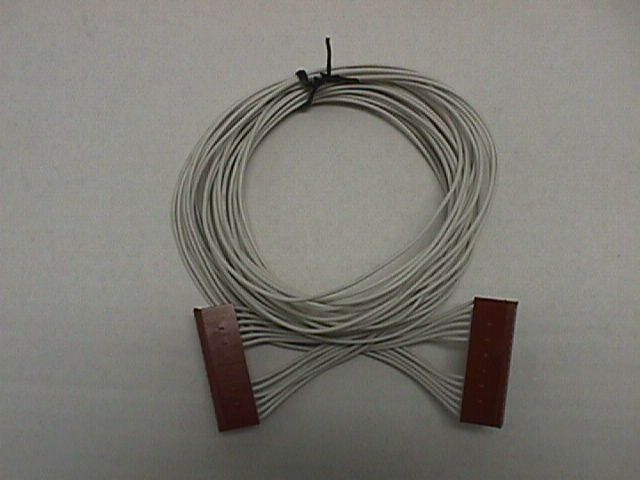

  • MP3SA-LCD ..4' LCD display cable

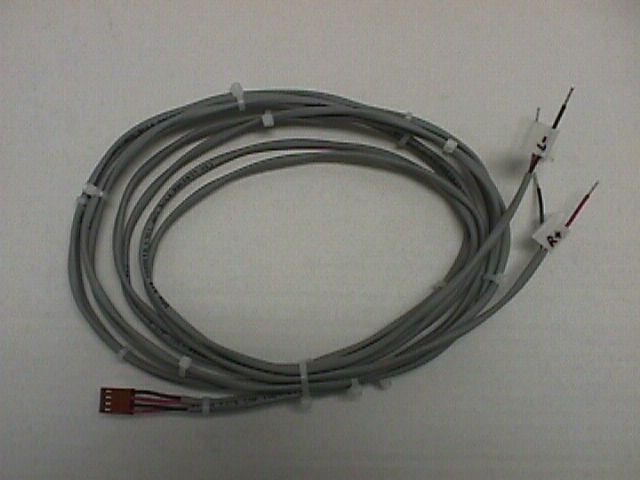

  • MP3SA-SPC ..4' speaker cable

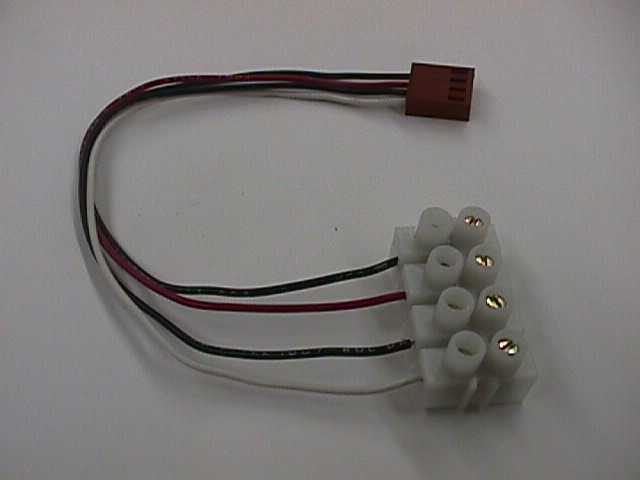

  • MP3SA-SPT ..Speaker terminal adapter

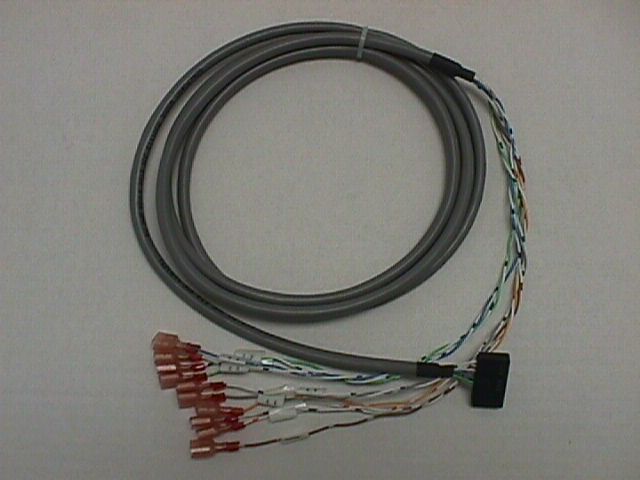

  • MP3SA-KP5 ..5 button harness
  • MP3SA-CA...RS232 option
  • MP3SA-ZIO..USB/SmartMedia Writer
