HAS BEEN REPLACED BY THE KPC-2

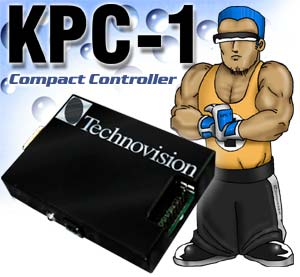

KPC-1 Box
KPC-1 Compact Controller

   The Technovision KPC-1 is a compact controller with varied applications. It can be used to control CD Players, LaserDisc Players, DVD, Video Switchers, and other RS232 devices. The KPC-1 can be used as a stand alone device with industrial button inputs or attached to a KEY34 keypad to add full function control to a "telephone style" interface.

Keypad Photo (back) with KPC-1

KPC-1 mounted on a KEY34 keypad


Download
DVD Synchronizing information
DVDS firmware manual
Related Products
   KEY34 Keypad
PC-2 Controller
Video Wall Controller
Power Adapter
LD48 Lamp Controller
421VS Video switcher
Digital 7 Segment Displays
Pushbuttons
Related Products

Standard KPC-1 Features

  • Two RS232 devices can be controlled
  • 12 button keypad port
  • CD player control port
  • "Remote In" port
  • 4 position DIP Switch for customer defined functions
  • 2 LED status lights
  • On-board EEPROM memory for data storage
  • Microprocessor controlled for future expansion

Physical Specifications

Power Requirements:
  AC 120V, 60 Hz
  (9V DC, 500mA power adapter included)

Power Consumption:
  1 W max.

Net Weight:
  339 g. (.75 lbs.)

Dimensions (HxWxD)
  2.2" x 3.15" x 0.5" (55 x 80 x 13mm)

Operating Temperature:
  32 to +132 deg. F (0 to +50 deg. C)

Operating Humidity
  0 to 90 % non-condensing


EXAMPLE SCHEMATICS


scheme

scheme
