KEY34 keypad

KEY34
Enlarge Picture

   The Technovision KEY34 is a flexible input device that is durable, compact and reliable. It can be combined with Technovision controllers such as the AC-1, TV66K or KPC-2 to control DVD players, video switchers and other RS232 devices.
Related Products
   KPC-2 Compact Controller
AC-1 Audio Controller
TV66K media Controller
Digital 7 Segment Displays
KEY34RL - Larger Keypad
Related Products

Standard Keypad Features

  • Buttons rated at 10 million presses
  • Durable metal faceplate
  • Four (5/16") 6-32 mounting studs for easy installation
  • Custom silk-screening available

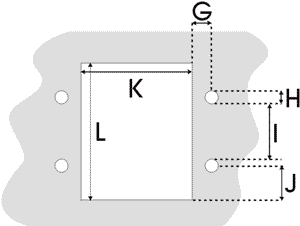

MOUNTING INSTRUCTIONS

KEY34 Dimensions

Key 34 Dimensions
INDEX
 inchesmm
A.358.75
B.7518.75
C.512.5
D3.6390.75
E.63515.9
F3.1578.8
G.256
H.164
I1.435
J.8521
K2.460
L3.280
Maximum panel thickness .75" (18.75mm)
Keypad has four 6/32 mounting studs
