DV-68
**Discontinued**

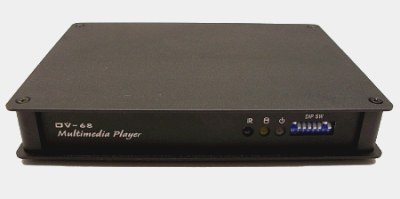

Click on picture above for a closer view

  The DV68 is an industrial MPEG-2, Divx, MP3 and JPG playback device, capable of either continuous video or interactive playback through user-selectable tracks. The DV68 was primarily designed for standalone applications, allowing for direct access to individual files of video (or MP3 audio) through various pushbuttons and a TV66K. The DV68 can also be triggered by motion sensors, computers, or RS232 multimedia controllers like the TV66K or KPC2 .

Physical Specifications
Power Requirements:
  4.8 W
  120/220VAC, 60/50 Hz
  (12VDC, universal power supply included)
Net Weight:
  1.5 lbs.
Operating Temperature/Humidity:
  -30F to 85F (non-condensing).
Dimensions (HxWxD)
  1.2" x 7.2" x 5.2"


Download
DV68 Quick Reference Guide
DV68 RS232 command list
MPEG4 encoding guide
........additional manuals
Related Products
   TV66K Controller
DV75N HiDef solid-state player
HD01 HD repeater
HD02 VGA/HD repeater
KPC-2 Controller
CDS12L LED/LAMP Controller
Pushbuttons
Motion Sensors
Related Products

Standard Features
  • Supports MPEG1&2 (.mpg), MPEG4 (.divx), .jpg and .mp3 playback.
  • Standard INTERACTIVE playback.
  • Built-in RS232 port (RJ11-4P4C)
  • VGA Output.
  • S-VIDEO Output.
  • Stereo Audio output.
  • Instant track Access.
  • MENU or REPEAT mode playback.
  • Compact Flash based.
  • Access to 99 tracks in MENU or REPEAT mode.
  • Built-in Motion Sensor port.
  • RoHS compatible.
Hardware Options:
TV66K 25-Button Controller
DV668 remote
1530-0020 Optional Service Remote
DV66RS232 RS232 control cable
CF-2G 2GB HighSpeed CF cards
