CDS12L lamp driver

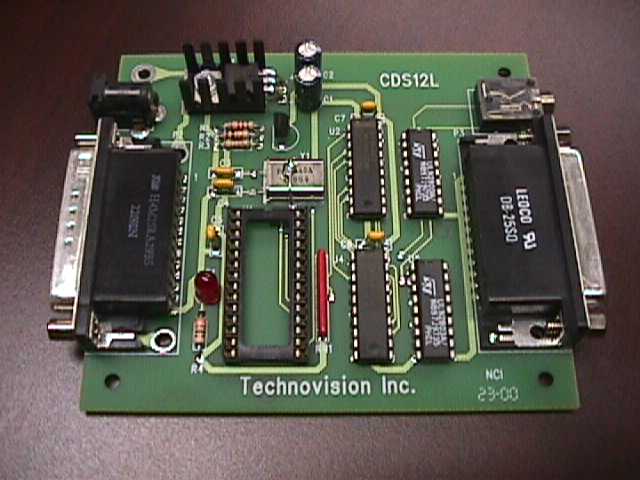

CDS12L/Lamp Controller image

   The Technovision CDS12L is an multi-purpose lamp driver/controller built to provide outputs to control twelve (12) different circuits of LEDs or bulbs (9-12 volt @500ma) while activating media players such as the TM21, THD002 or DV75N as well as other A/V devices.

Standard Features
  • Simple installation
  • Uses 2 x ULN2803A lamp drivers
  • 3.5mm control port for A/V devices
  • DB25 female connector for up to 16 button
  • DB25 female connector for 12 lamp cables
  • Microprocessor controlled for future expansion
Related Products
   LD48..lamp driver
Video players
TM21..MP3 player
Pushbuttons
Power Adapter
Related Products Physical Specifications

Power Requirements:
  AC 120V, 60 Hz
  (9V DC, 500mA power adapter included)
Power Consumption:
  1 W max.
Net Weight:
  124 g.
Dimensions (HxWxD)
   35 x 127 x 95mm
Operating Temperature:
  32 to +132 deg. F (0 to +50 deg. C)
Operating Humidity
  0 to 90 % non-condensing
