BODAB
** NOT A STOCK ITEM **

   The Technovision BODAB Sampler is a very cost effective solution to audio sampling. This device can be attached to a metal plate that can be mounted to a display or inserted into an enclosure as simple as a cardboard box. This device can be powered by 4 "AA" batteries (or 9v power supply) and can play multiple audio samples stored on a recordable audio chip.
   Technovision can provide custom developed firmware for the BODAB if you require features not standard with the unit.

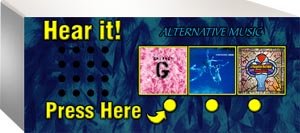

BODAB

BODAB Insides

MANUALS

scheme
Related Products
   TecMP3 Industrial MP3 player
TecCD Industrial CD player
AC1 Controller
PC-2 Multimedia Controller
KPC-2 Multimedia Controller
LD48 Lamp Controller
421VS Video/Audio switcher
Pushbuttons
KEY34 Keypad
Related Products

Standard Features
  • Can be battery operated
  • Recordable
  • Speaker volume adjust
  • Record level adjustment
  • Connector for 9VDC adapter
  • 1 watt built in amplifier
  • 4 ohm speaker available
  • 30 sec (standard) to 4 min recordable chips available
  • Microprocessor controlled for future expansion
Physical Specifications
Power Requirements:
  4 "AA" batteries
  (optional 9VDC power adapter)
Power Consumption:
  .01 to 2.6 mA (volume dependent)
Net Weight:
   900g. (1.9 lbs.) with batteries
Dimensions (HxWxD)
   127 x 311 x 57mm (5" x 12.25" x 2.25")
Operating Temperature:
  32 to +132 deg. F (0 to +50 deg. C)
Operating Humidity
  0 to 90 % non-condensing
