DV-75H HiDef Player
**Current model is DV75N**

DV-75H image
Click on picture above for a closer view

   The Technovision DV-75H is a compact High Definition (HD) solid-state media player with varied applications. When used as a remote (networked) player, functions such as Automatic Content Updates from a server (Remote Internet Server, LAN or WLAN), playback scheduling and Scrolling (Banner) Messaging are all possible.

Up to 16 DV75Hs can also be connected together through an Ethernet network so that content playback is synchronized between all the players.

Package Contents:
  • DV-75H HD/NETWORK/SYNCH media player
  • 100-240V, 50/60 Hz to 5 VDC 17.5W Adapter
  • IR remote control

    Some hardware options:
  • HS control cable, 3' TV66K cable
  • CCHDMI-3, 3' HDMI cable $8 .est
  • CCHDMI-6, 6' HDMI cable $10 .est
  • CCHDMI-10, 10' HDMI cable $12 .est
  • DV75HRCA3, A/V cable (VIDEO/L/R)
  • TESW8, 8-port hub/switcher for synching.
  • TESW5, 5-port hub/switcher for synching.
  • CAT5-2, 2' CAT5 network cable.
  • CAT5-7, 7' CAT5 network cable.
  • CAT5-10, 10' CAT5 network cable.
  • CAT5R-4, 4' retractable CAT5 Download
    DV-75H Quick Reference Guide F/W 2.54
    ........more manuals
  • Related Products
       DV66.. SD solid-state player
    HD01.. HDMI solid-state repeater
    Related Products

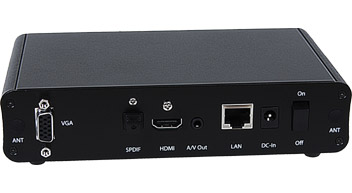

    DV-75 Features
  • Network and remote IP updating firmware
  • MPEG1/2/4, WMV9, MP3 and JPG
  • LED status lights (DATA, LAN and POWER)
  • USB 2.0 port for temporary content override
  • CF card slot on front: FAT32 format
  • VGA Output:
    800x600 1024x768 1280x768 1280x1024 1366x768 1920x1080
  • SPDIF audio output
  • HDMI Output: 480p to 1080p

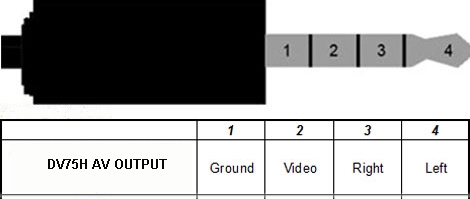

  • A/V OUT on 3.5mm, 4-conductor jack
  • RJ45 LAN Port
  • Power switch

    Physical Specifications
    Power Supply:
      100-240VAC, 50/60 Hz
      5Vdc (2.1mm, 17.5W wall adapter included)
    Power Consumption:
      300ma (average) @ 5VDC
    Net Weight:
      446 g. (.99 lbs.)
    Dimensions (L x W x H)
      6.75" x 4" x 1-3/4"
      171mm x 102mm x 45mm
    Operating Temperature:
      32 to +140 deg. F (0 to +60 deg. C)
    Operating Humidity
      0 to 85 % non-condensing
