DV-75 HiDef Player
**New model is DV75N**

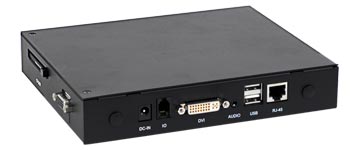

DV-75 image
Click on picture above for more images

   The Technovision DV-75 is a High Definition (HD) solid-state media player with varied applications. When used as a remote (networked) player, functions such as Automatic Content Updates from an internet server (via LAN or WLAN), content scheduling, MultiImage screens, ESYNCH synchronized playback, HiDef slideshow, and scrolling (banner) messaging are all possible. You can also make the unit "interactive" with the addition of a TV66K or KPC2. This will allow the DV-75 to function as a controllable, high definition solid-state playback device for theatres, kiosks and stand-alone displays. The RS232TTL control and built in MENU mode allows for button access to various interactive clips as well as multi-player, synchronized playback.

Package Contents:
  • DV-75 HD/NETWORK/SYNCH media player
  • 100-240VAC to 12VDC wall adapter
  • IR remote control
  • 6 foot VGA cable
  • 6 foot 1/8" to 1/8" audio cable (M-M)

    Some hardware options:
  • TV66K or TV66KC..Controller/Synchronizer.
  • KPC2..Multimedia Controller.
  • LD48..LAMP/LED Controller.
  • DV66RS232..DB9F-RJ11 RS232C adapter
  • 35-RCAF-A..3.5mm to stereo RCA(F) adapter
  • 35-RCAM-C..4', 3.5mm-stereo RCA(M)
  • TESW5..5-port hub for ESYNCH mode
  • TESW8..8-port hub for ESYNCH mode
  • MiniPCI WiFi card option. Download
    DV-75 Specification sheet
    DV-75 Quick Reference Guide F/W 2.42
    ........more manuals
  • Related Products
       TV66K.controller
    KPC2..controller
    DV75H..HDMI player
    DV66..SD solid-state player
    DV01..SD video repeater
    Pushbuttons
    Power Adapter
    LD48..Lamp Controller
    KEY34..Keypad
    Related Products

    DV-75 Features
  • Network and remote IP updating firmware included.
  • MPEG1/2/4, WMV9, MP3 and JPG.
  • JPEG supports up to 4096x4096 (BASELINE)
  • USB port for temporary content override.
  • VGA Output:
    800x600 1024x768 1280x768 1280x1024 1366x768 1920x1080
  • CF card slot: FAT32 format
  • RJ12: RS232(TTL) I/O connector.
  • DVI Output: 480p to 1080p + VGA
  • 3.5mm: LINE OUT audio (stereo).
  • 2 x USB HOST Connectors.
  • RJ45: Network Port.
  • On-board Mini-PCI slot.
  • On-board s-video / composite / Digital Audio / component headers.

    Physical Specifications
    Power Supply:
      Input: 100-240VAC, 47/63 Hz, TYPE B plug.
      Output: 12Vdc (2.1mm center positive) @ 2A. The original version (prior to 2008) had a 2.5mm center positive.

    Power Consumption:
     300ma (average)
    Net Weight:
      330 g. (.75 lbs.)
    Dimensions (L x W x H),/font>
      7 -5/8" x 6" x 1-1/4"
      185mm x 152mm x 47mm

    Operating Temperature:
      32 to +132 deg. F (0 to +50 deg. C)
    Operating Humidity
      0 to 80 % non-condensing
