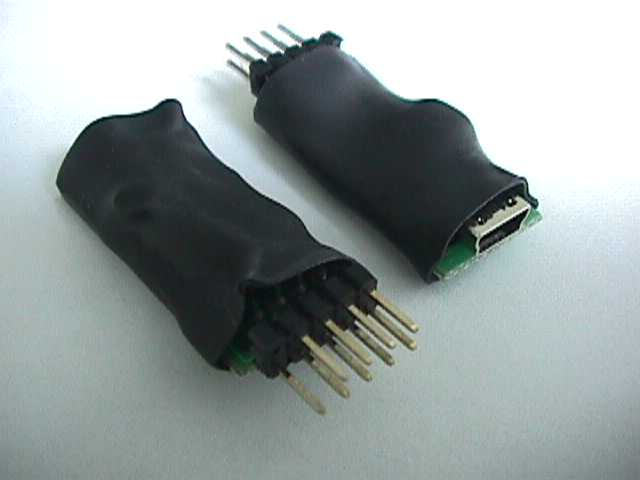

USBKB Controller
Click above for controller images

   The Technovision® USBKB controller provides the means to integrate reliable, heavy duty pushbuttons, membrane keypads, numeric keypad, motion sensor or any contact closure (or release) into applications requiring a USB keyboard.

   This device is recommended for interactive installations requiring HEAVY DUTY buttons or motion sensors to be interfaced to a USB port.
Related Products
   KEY34..Numeric keypad
KEY34RL..Numeric keypad
Pushbuttons
Motion Sensors
Related Products
Standard Features

  • Includes 5 foot USB cable.
  • Connector for external buttons.
  • Supports Form 'A' and 'C' contacts, with the standard firmware supporting 4 'NC' and 4 'NO' inputs.
  • 'NC' contacts send 'a','b','c','d' and the 'NO' contacts send 'e','f','g' and 'h'.
  • Firmware can be customized.
  • HID Compatible.
  • Inexpensive.
  • Compact (1.5" x .5").
  • Packaged shipping weight less than 1 lb.
  • Shielded.
Hardware Options:
USB35A.... 8 X 3.5mm cable adapter.

Download
KEY18 firmware Manual (pdf)
.....more manuals
