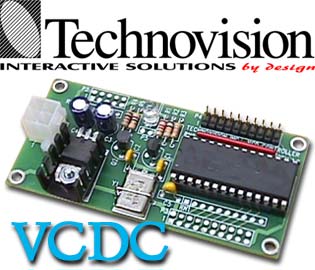

VCDC Image
Infrared Controller

Standard V72BC Features

  • Built-in infrared transmitter
  • 8 button port (16 available)
  • 8 TTL (5VDC) output available
  • Simple installation
  • 2x10 header connectors for buttons, keypad or motion sensor
  • Inexpensive (under U$75 for board)
  • Microprocessor controlled for future expansion

Download
LL-IR firmware manual (PDF)
Related Products
   Pioneer DVD players
Pushbuttons
Led Displays
Related Products

   The Technovision VCDC is an inexpensive controller built to transmit standard infrared signals. Individual or sequences of infrared signals can be pre-programmed into the unit by Technovision, then transmitted to audio/video devices such as consumer DVD or CD players. These signals can be initiated by dry contact closures from devices such as motion sensor or pushbuttons.

Physical Specifications

Power Requirements:
  AC 120V, 60 Hz
  (9V DC, 500mA power adapter included)
Power Consumption:
  1 W max.
Net Weight:
  30 g.
Dimensions (HxWxD)
   17 x 43 x 86mm
Operating Temperature:
  32 to +132 deg. F (0 to +50 deg. C)
Operating Humidity
  0 to 90 % non-condensing

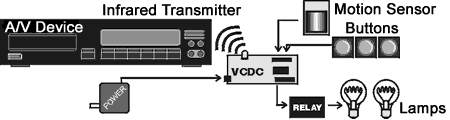

Diagram
