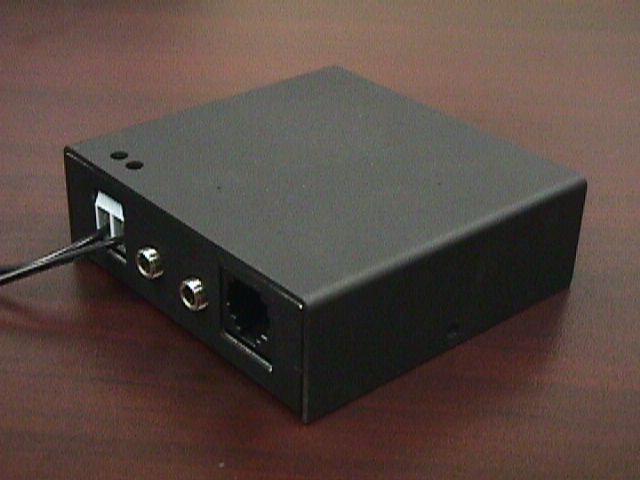

TecIR Controller
Click on picture above for more images

Standard TecIR Features
  • Two built-in infrared transmitter ports
  • 6P6C button connector (up to 9 buttons)
  • Screw terminal for power connector
  • Simple installation
  • Microprocessor controlled for future expansion
Optional 10 foot "stick on" transmitters:
IRR1(single)
Single IR transmitter

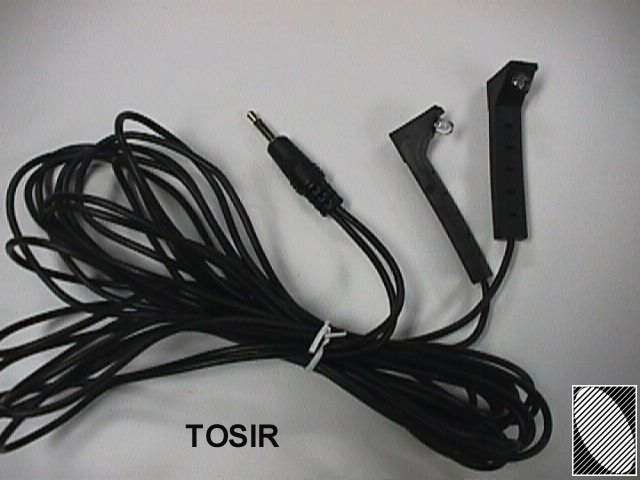

IRR2(dual) or TOSIR(dual)
Double IR transmitter Tosir Double IR

Download
HD01L firmware manual
........more manuals
 Related Products
   Pushbuttons
HD01 1080p player
HD02 1080p/VGA player
Motion Sensors
KPC2 Controller
TV66K Controller
Related Products

   The Technovision TecIR is an inexpensive controller built to transmit infrared signals using plug-in infrared transmitters. Individual or SEQUENCES of infrared signals can be pre-programmed into the unit by Technovision, then transmitted to audio/video devices such as the HD01 (solid state HD media player), consumer HD players, LCD screens, amplifiers, or most IR controllable devices. These signals can be initiated by dry contact closures from devices such as motion sensor, pushbuttons or membrane keypads. The TecIR can also be used for triggering relays and LEDs.

Physical Specifications

Power Requirements:
AC 120V, 60 Hz
(5V DC, power adapter included)
Power Consumption:
1 W max.
Net Weight:
30 g.
Dimensions(WxDxH):
60mm x 60mm x 25mm
Operating Temperature:
32 to +132 deg. F (0 to +50 deg. C)
Operating Humidity
0 to 90 % non-condensing
